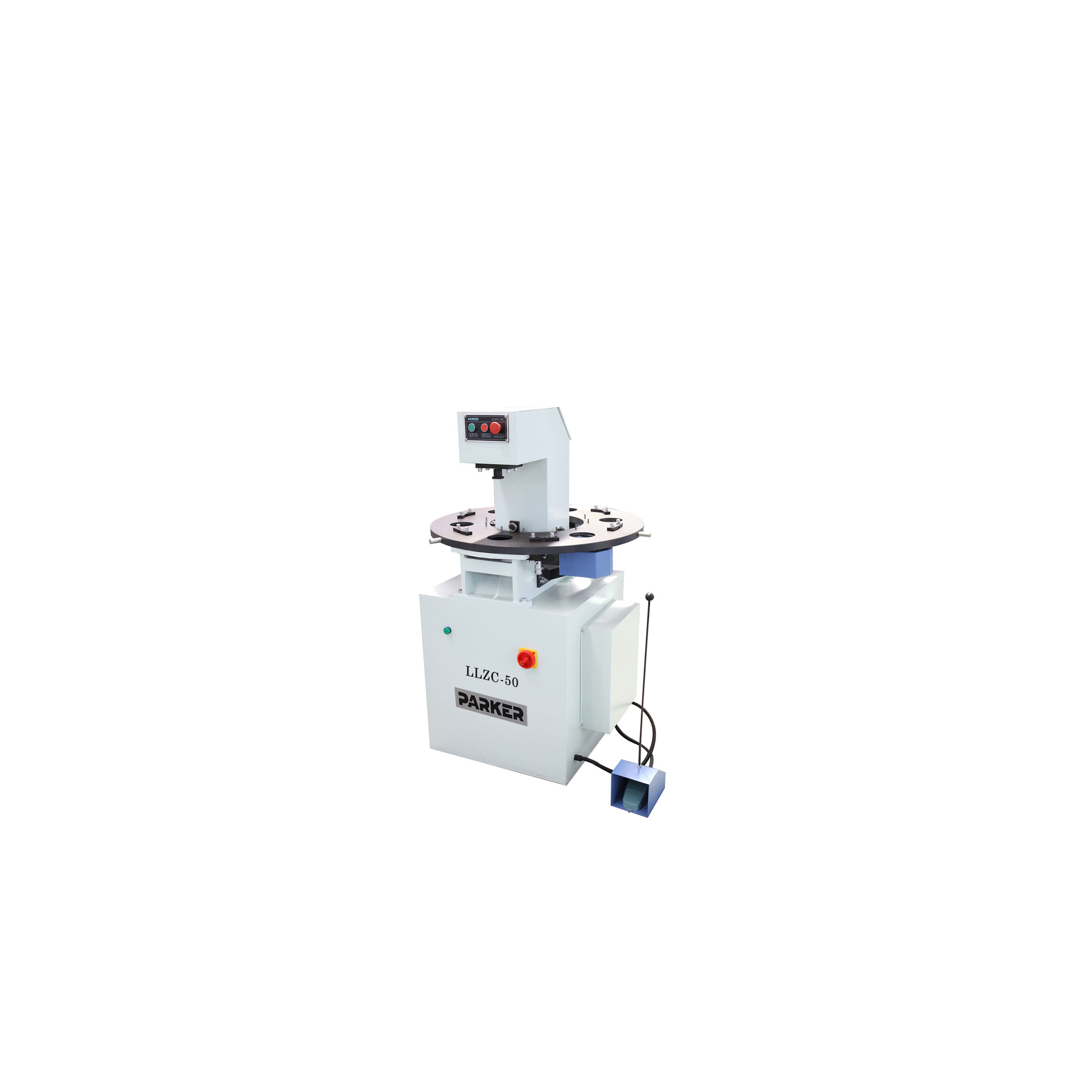

Alu-alloy Variable Punching Machine

Feature:

◆ Used for punching processing in the manufacture of aluminium window and door.

◆ Every combination punching die equipped with the machine can achieve various punching process,by-     changing processing position, various types profiles can be processed.

◆ Adopt disk worktable equipped with six dies. Each die be used at any time by the worktable rotating,           which greatly increased the production efficiency.

Parameter:

Voltage: 380V  50HZ

Power: 2.2KW

Rotary: 1400rpm

Rated oil pump pressure: 16Mpa

Capacity of box:20L

Rated pressure: 50KN

Punching travel times: 30 Times/min

Overall dimension: 900mmx900mmx1400mm

Weight: 500Kg
