Features:

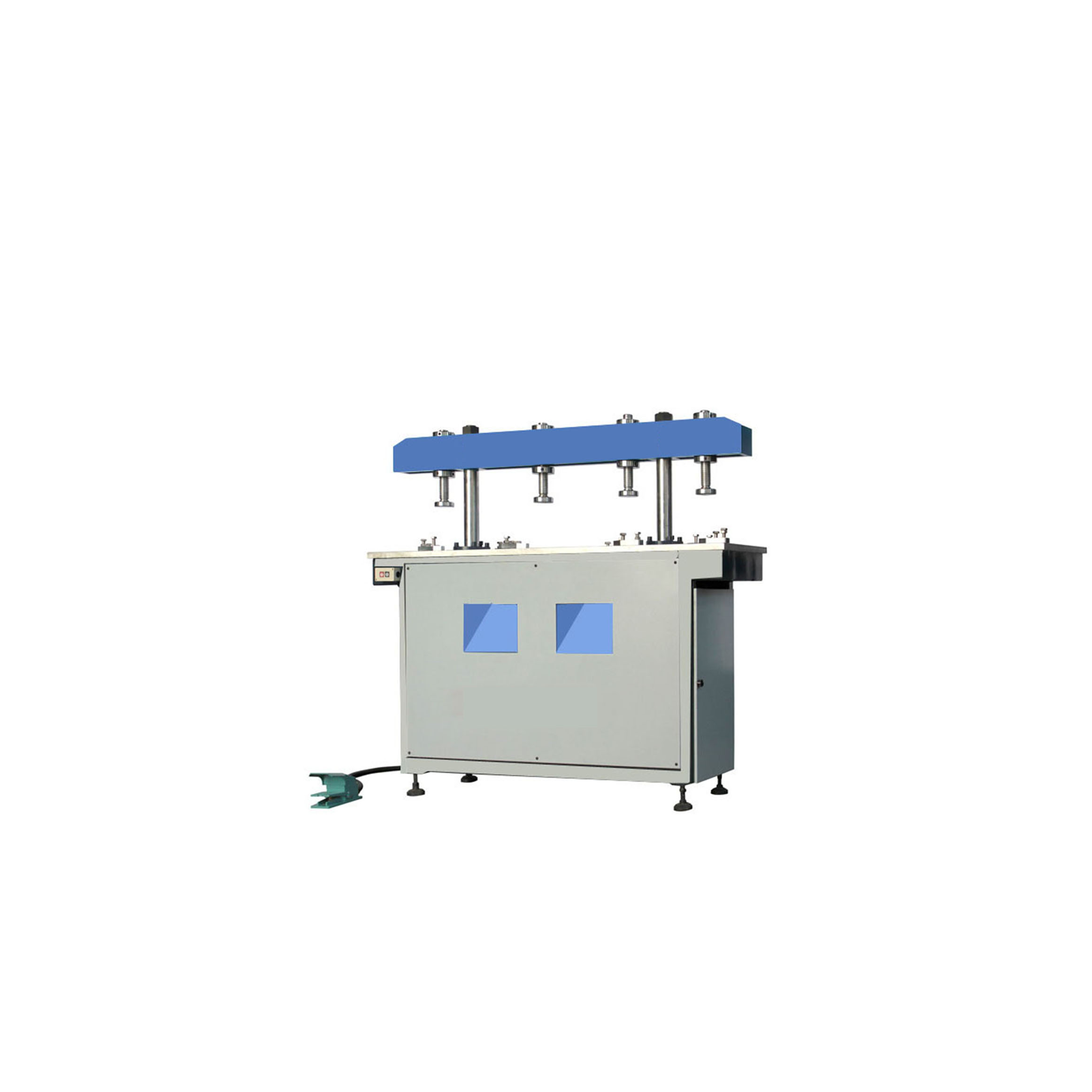

It is mainly used in combination with single mold and combined mold of aluminum alloy door and window series. It can complete the punching of all the holes and gaps of various corresponding ordinary profiles and heat insulation profiles. Four guide pillars are used for guidance, with good punching stability, high efficiency, low noise, no pollution, high precision, quick, easy, safe and reliable to change the mold. The pendulum shaft is driven by a hydraulic cylinder to force the mechanical control of the two tension columns to be synchronized, which completely eliminates the jitter, material jam, and knife breaks that often occur on similar models due to unbalanced mold or blanking positions and uneven forces. At the same time, compared with the models of the same size on the market, it has more mold space and greater punching force.
Technical Parameters
Processing station 12pcs
Maximum enclosed height 280mm
Minimum enclosed height140mm
Maximum cutting stroke 60mm
Diameter of The cylinder 80mm
fuel tank volume 40L
power of motor2.2Kw
Maximum impact shear 8000Kg
voltage380VAC/50HZ
Overall dimension (length x width x height) 1300X730X1280mm
weight:1000kg
