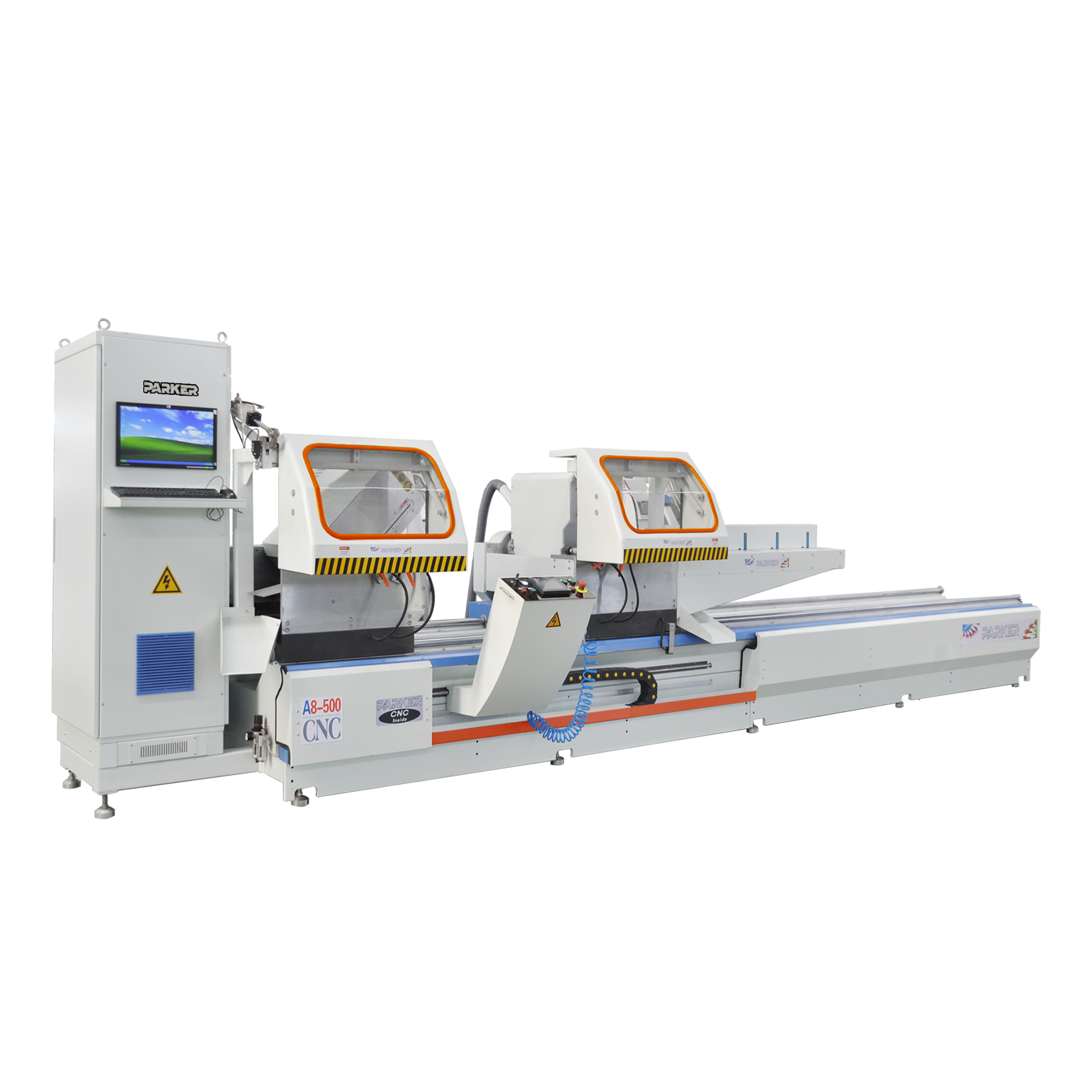

3 Axis Any Angle Cutting Saw with CNC

Features:

◆ The machine is advanced double-head cutting saw.

◆ The control system adopts the new closed-loop system, and can ensure the accuracy of repeat length.

◆ The imported blade with high precision makes the cutting surface smoothly.

◆ The servomotor drives the speed reducer to adjust the cutting angle in 22.5°-157.5°

◆ The imported control system can ensure the cutting quality.

◆ Several profile processing dimensions can be input one time and make continuous cutting.

◆ The imported service motor with high moving speed and high precision should drive the sawing head.

◆ The machine has label printing function (option).

Parameter:

Voltage 380V 50HZ

Power 6.8KW

Air pressure 0.5-0.8MPa

Blade specification :Φ500×Φ30×4.4Z=120 (standard size)Blade specification:                   Φ500×Φ30×4.4Z=120 (standard size)

Cutter moving speed :0-2m/min

Cutting length Max5000mm   Min480 at90°

  Cutting width 120mm

Cutting height 230mm

Cutting angle :45°-157.5°

Cutting Profile Surface Roughness :±4′

 Overall dimension: 6800mmX1500mmX2040mm
