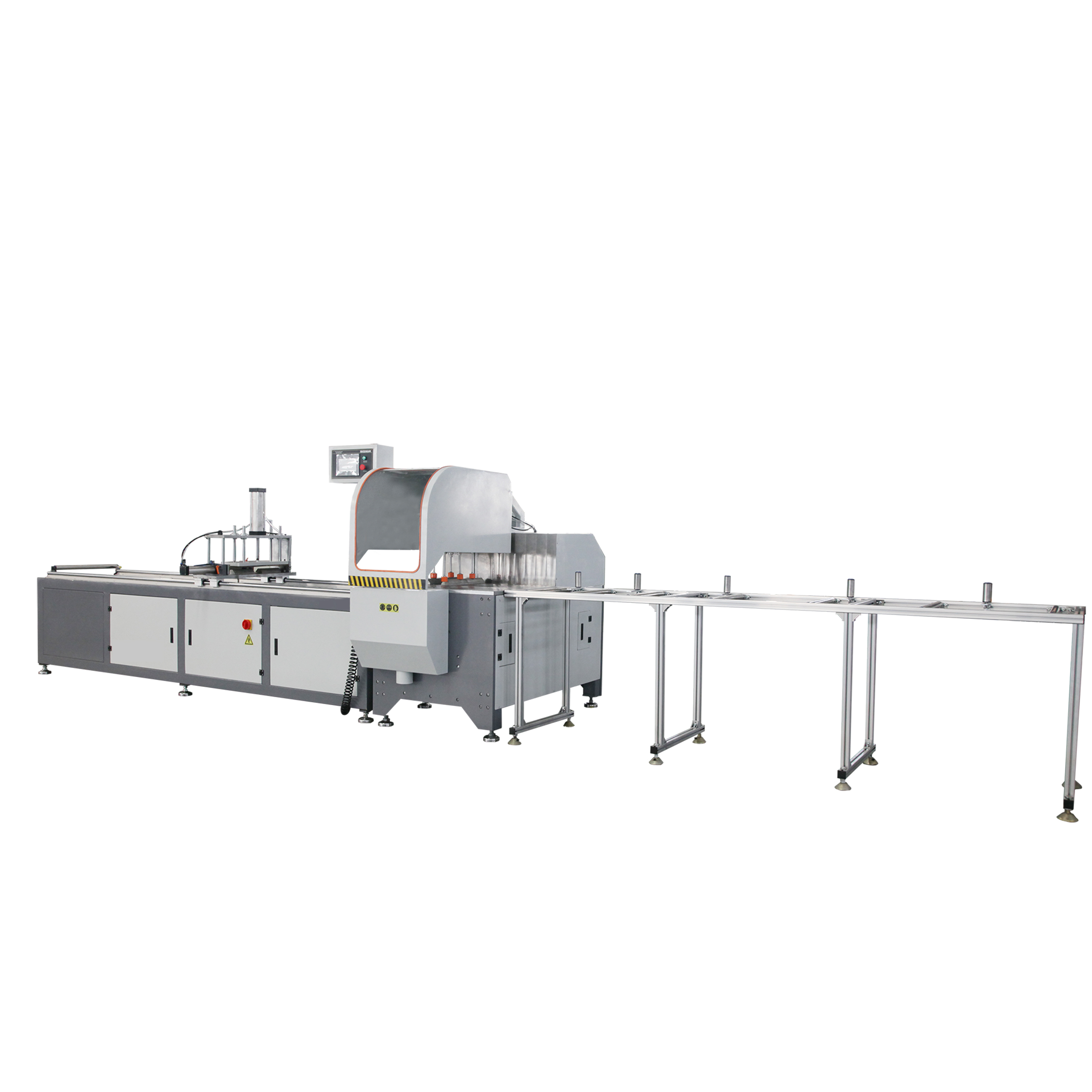

Aluminium CNC Single Head Cutting Machine

Features:

1. With high operability, the profile is clamped (it is impossible to work without pressing the saw blade), and the gas-liquid system is used to control the inlet and outlet of the saw blade.

2. The lathe bed is welded with steel pipe and steel plate, aging treatment, high strength, good rigidity, stable and reliable performance. The round guide rail and lead screw for automatic feeding have high precision.

3. The electric parts in the electric control box are the central control center of the sawing machine.

4. The cutting range of this equipment is wide, which is the first choice of modern aluminum industry profiles.

5. Straight line cutting 90 degrees.

6. Customized options: automatic feeding part, European style pallet, servo drive, ball screw drive.

TECHNICAL DATA.

Voltage/Frequency            380V  50Hz

Motor Power              3KW+1.5KW+0.75KW

Blade Rotary Speed：                2800r/min

Pressure：                0.5-0.8MPa

Automatic feeding length：          3000mm

Cutting width *height：      200*200mm    150*420mm

Blade dimension          φ650*φ38.5*140z

Overall Dimension(L*W*H) 5000×1100×1900

Weight              1800kg

Cutting Profile Surface Roughness              ±2＇
