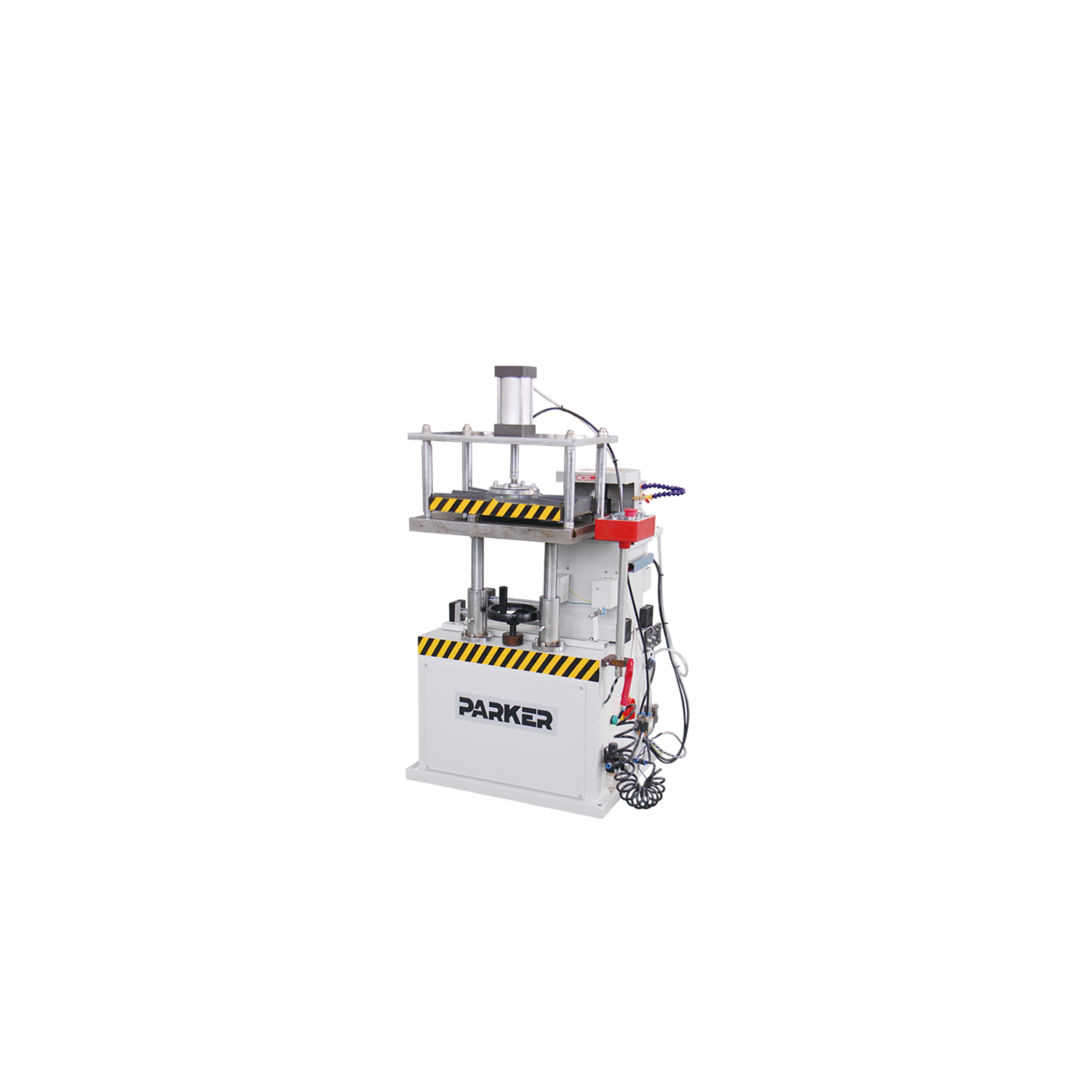

Alu-alloy Material Dejection End Milling Machine

Feature:

◆ Can work for several profiles at one time.

◆ Used for processing aluminium profile end step face and end slot etc.

◆ Super precision main shaft insured accurate and steady processing.

◆ Adjustable processing angle within 30°- 90°.

◆ Convenient tool setting due to adjustable worktable.

◆ Tool main shaft is connected by shaft coupling, thus the motor main shaft rotating accuracy can not affect the tool’s working accuracy.

◆ Tool feeding adopted linear bearing motion pair, which insured steady process.

Parameter:

Voltage: 380V   50HZ

Motor Power: 1.5KW

Motor adjusted travel: 0-80mm

Air pressure: 0.5-0.8MPa

Blade specification: Φ200

Rotary speed: 2800r/min

Surface Harshness: Ra12.5 µ m

Overall dimension: 850mmX740mmX1280mm

Weight: 150KG
