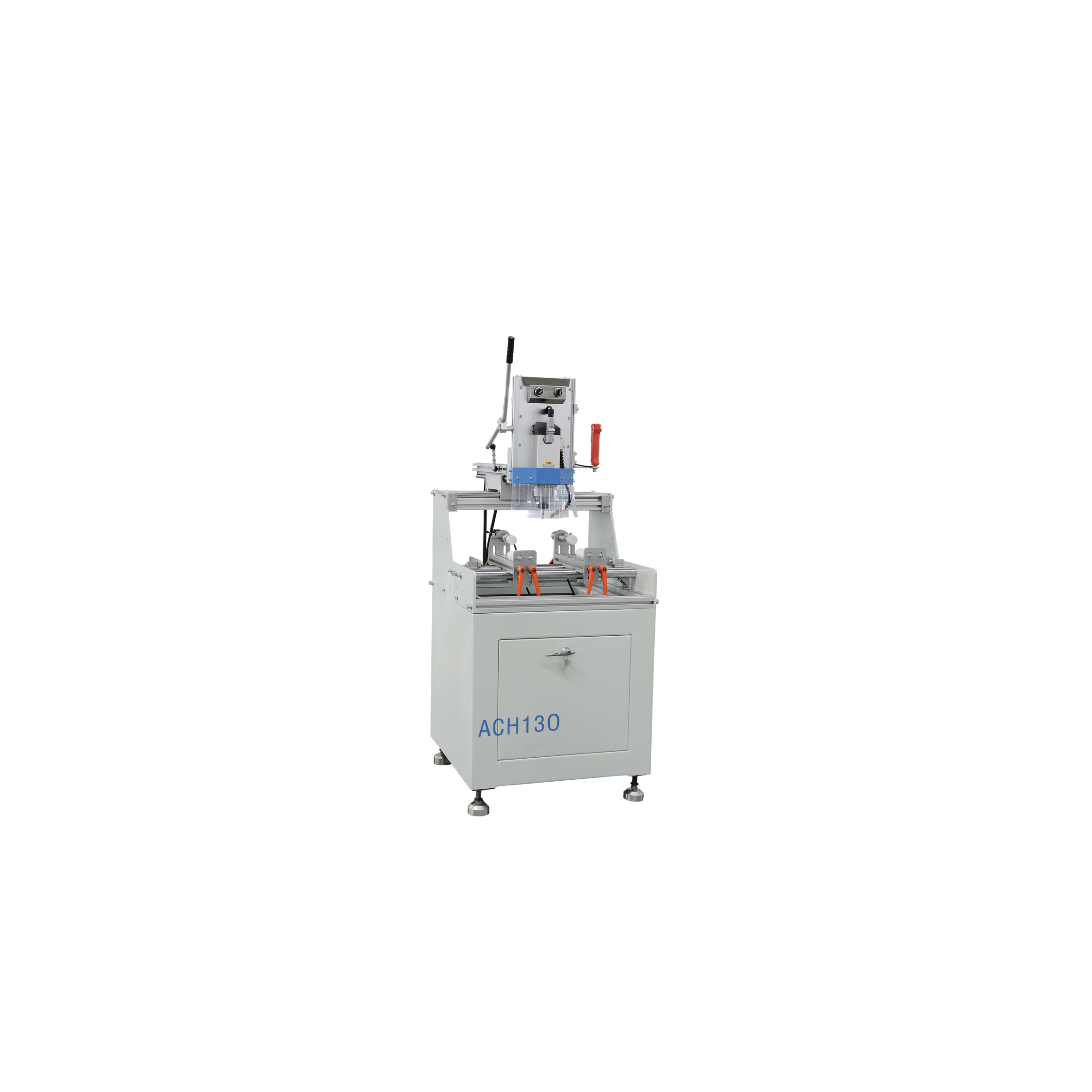

Alu-alloy Profile High Speed Copy Router

Feature:

◆ Aluminium Curtain Wall High Speed Copy Router is used for processing different kinds of holes, grooves and water slot and so on.

◆ This machine has beautiful structure with small volume. All the clamping device and motor adopt air pressure control.

◆ ACH130 has many advantages: easy to change copying plate; high efficient; process continuously and easy to operate; large scope.

Parameter:

Voltage: 380V   50HZ

Motor Power: 4.5KW

Air pressure: 0.5-0.8MPa

Diameter of Milling Cutter: Φ8mm

Air consumption: 20L/min

Processing profile section: 200mmX150mm

Copying dimension: 370X125mm

Overall dimension: 2180mmX1000mmX1700mm

Weight: 380KG
