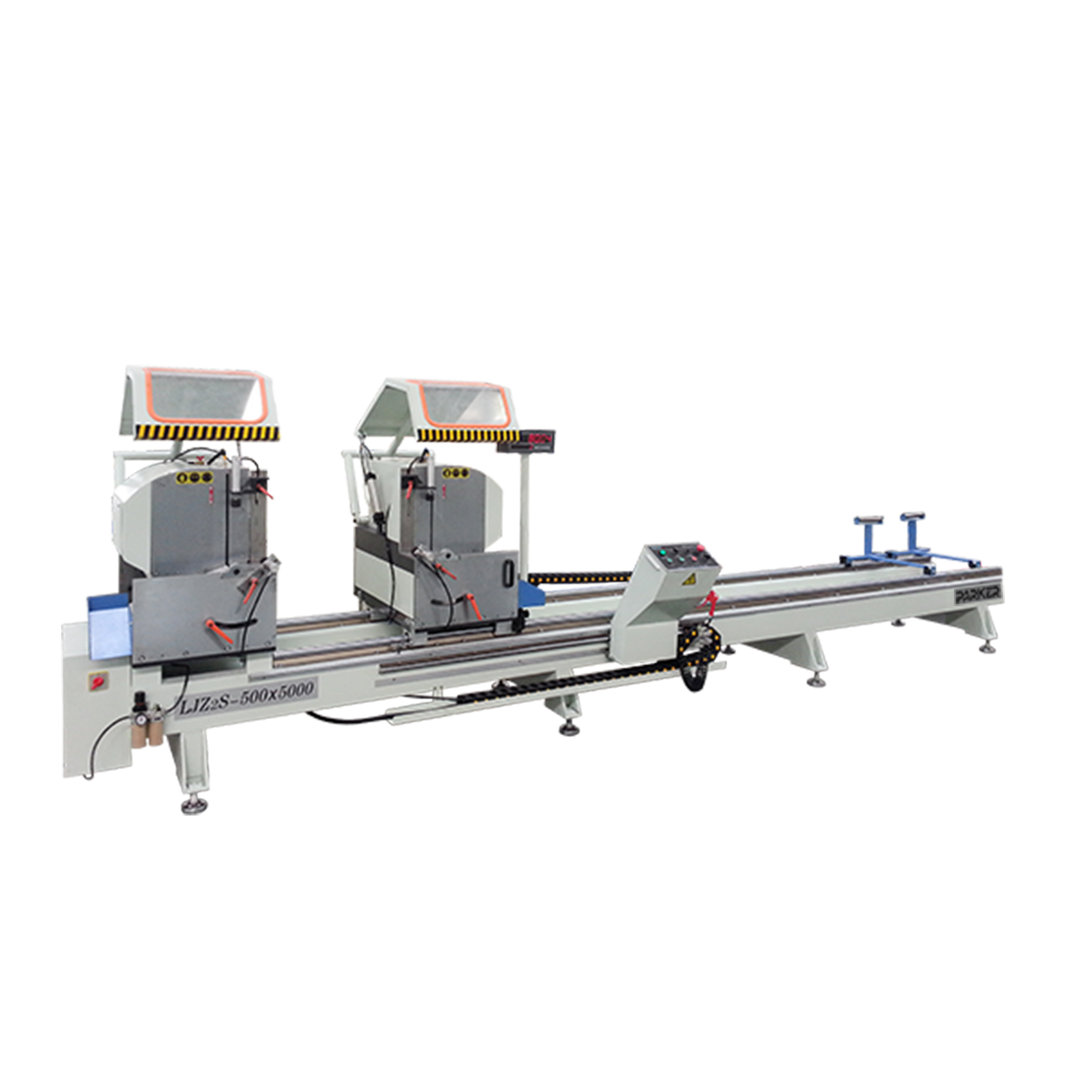

Aluminum Digital Display Double Mitre Cutting Saw

Feature:

◆ LJZ2S-550X4200 is used for cutting of alu-alloy and wall profile. The imported special hard-metal saw features the high precision and efficiency for cutting alu-alloy doors and windows. And the cutting precision has reached the advanced level in the world.

◆ The hi-precision main shaft makes the saw stable and the surface smooth. The gas-liquid damping cylinder realizes smooth feeding and steady moving. The automatically opening and closing protecting cover makes the operation safe and easy.

◆ The moving heads adopt imported linear bearing motion pair, and they features high precision. The moving feeder can efficiently locate the profile, and making the clamping easy and reliable. With the large saws and long structures, the saw has large cutting range.

◆ If CNC system is put in, it can make the cutting much more precise (precision 0.01mm), and the operating more visualized.

Parameter:

Voltage: 380V   50HZ

Power: 4.4KW

Air pressure: 0.5-0.8MPa

Air consumption: 200L/min

Blade specification: Φ550×Φ30×4.4Z=120(standard size)

Cutter moving speed: 0-2m/min

Cutting length: Max4000mm   Min200mm

Cutting width: Max.135mm

Cutting height: Max.300mm

Cutting angle: 45° 90°

Repeat locating length error: ±0.2mm

Angle error：±4′

Surface plainness: ±0.1mm

Surface harshness: Ra12.5µm

Overall dimension: 5500mmX1750mmX1990mm
