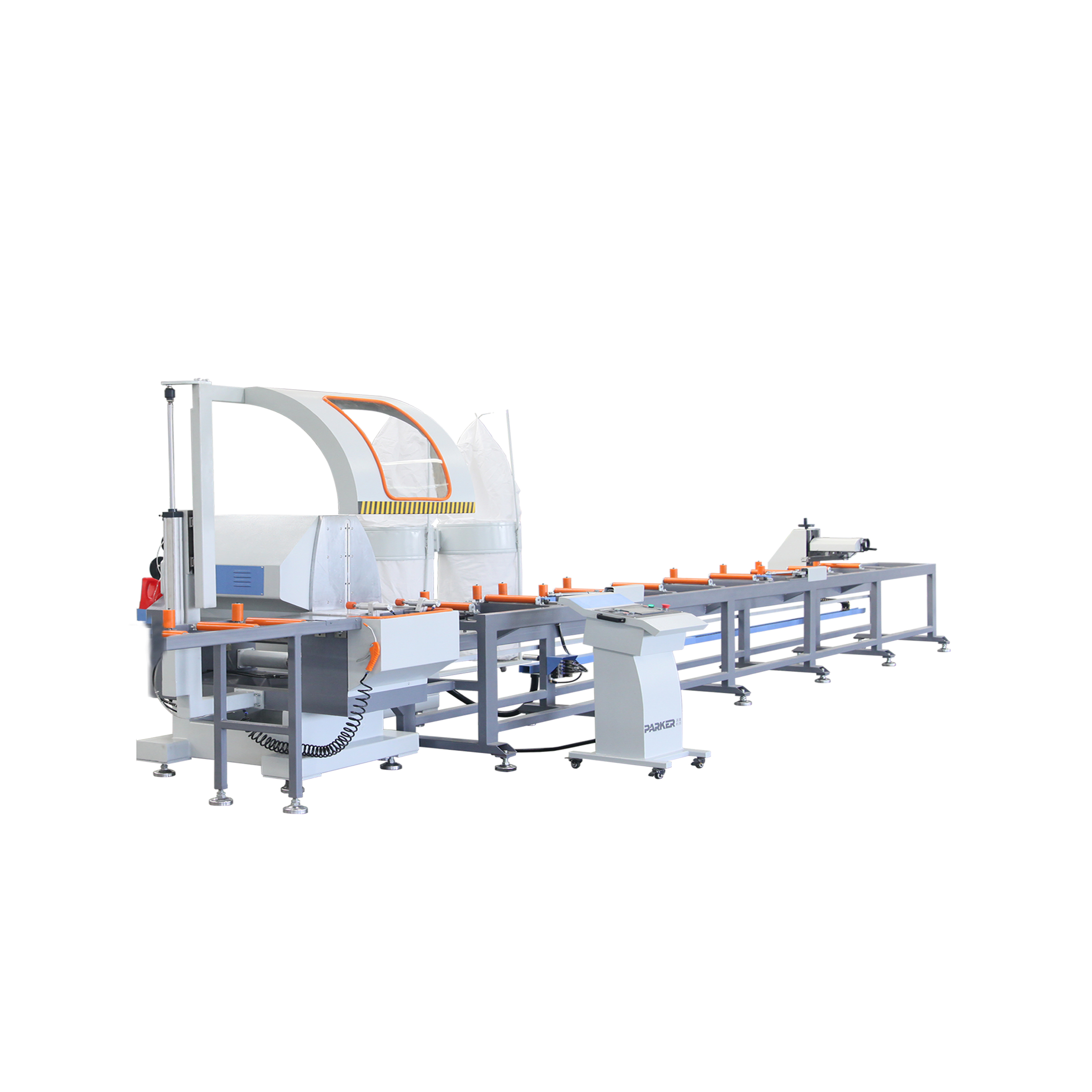

Aluminum profile CNC single-head any angle cutting saw

Application:

A8-D650 aluminum profile CNC single-head arbitrary angle cutting saw is our company's independent research and development of the aluminum profile sawing processing equipment. It is the company's latest research and development of one of the numerical control equipment with advanced technology,reliable performance, simple operation, intelligent high and so on.

Main Features:

1. A8-D650 aluminum profile CNC single-head arbitrary angle cutting saw processing efficiency is high, suitable for large-scale production. The machine is used for cutting the length of aluminum alloy door and window profile ruler.

2. Safety protection, safety protection is fully set.

3. With CNC technology, automatic ruler bottoming can be achieved for profiles of different sizes.

4. High-quality imported aluminum special carbide blades for accurate cutting performance.

5. High-precision original imported spindle motor, to ensure that the blade rotation smoothly and effectively improve the quality of the profile cutting surface.

6. The frame is welded by a high-strength rectangular tube through multiple strength calculations and load-bearing strength analysis. The entire frame is spray-painted after being pickled, phosphated and manually aged. This machine uses high-quality electrical components, high reliability. The whole control system line is all protected, the maintenance operation is safer. Pneumatic system using imported pneumatic components, long life and easy maintenance, and equipped with automatic water filtration, water release, lubrication cylinders and other functions. Is the main equipment for processing and producing fine aluminum alloy doors and windows.

Main usage and scope of application

This machine is to adapt to the development of China's aluminum profile processing industry, and the development of new models. The machine is simple to operate, reliable in performance, technologically advanced and easy to maintain. The machine is mainly used for the processing of aluminum profiles. With the use of carbide blades, the cutting speed is high, the production efficiency is high, the machining accuracy is high

Detail Parameter:

Valtage 380V 50Hz

Power 7KW

Rotary speed 3000r/min

Air Pressure 0.5-0.8MPa

Gas consumption 100L/min

Cutting angle 15°-  165°

Diameter of Saw Blade φ650×5×φ30×Z160

Dimension 10230×2150×2100

Weight 1800KG
