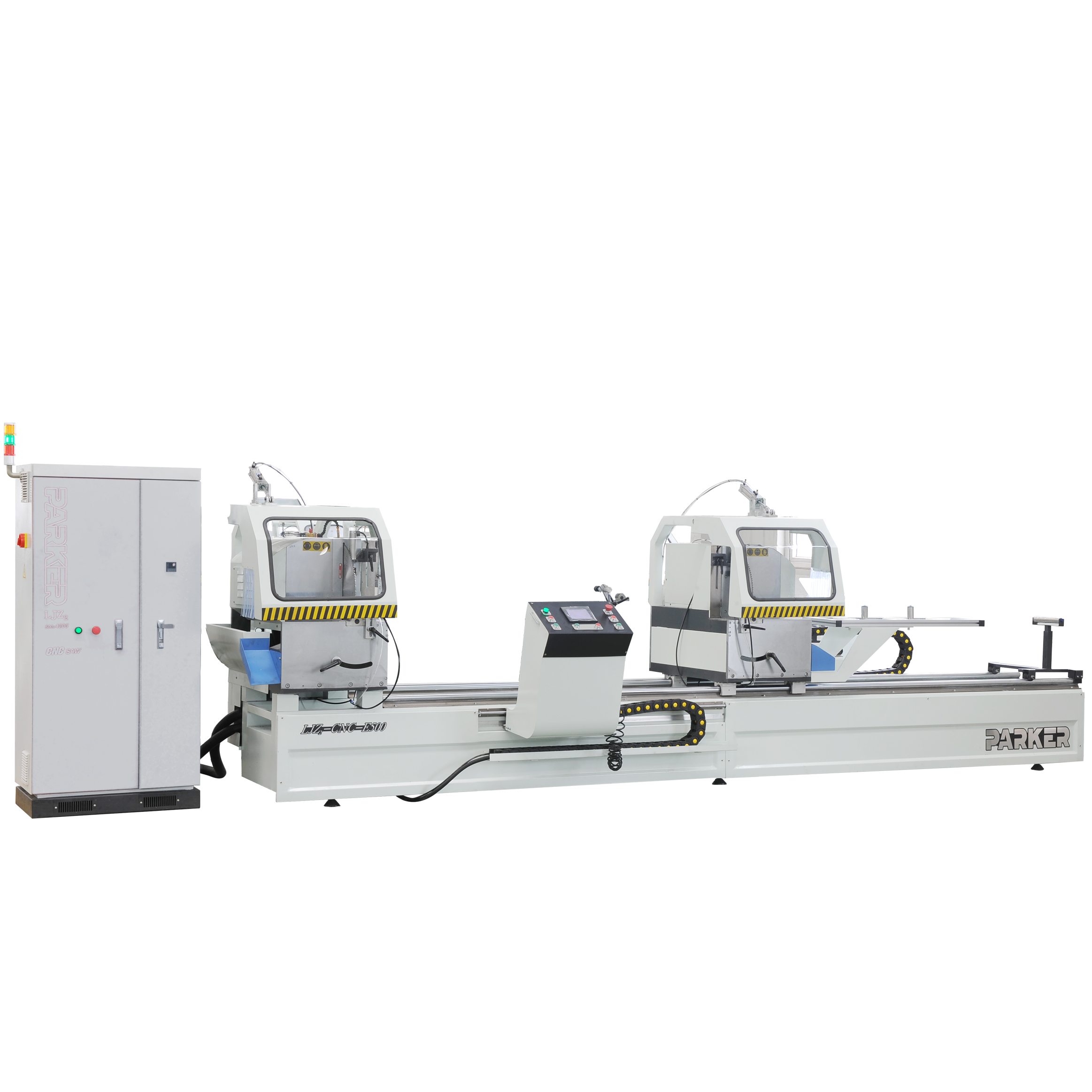

Aluminium CNC Control Double Mitre Cutting Saw

Features:

◆ Used for not only aluminum profile cutting, but also corner connector cutting.

◆ Feeding system adopts imported linear guide pair, with high accuracy and long service life.

◆ Adopted high helical pitch ball screw-lead motion, with high accurate driving, locating and smooth working.

◆ Adopted CNC technique, can achieve various profile auto cutting off.

◆ 22.5°, 45°and 90°cutting is available.

◆ Imported carbide saw blade give accurate processing and high endurance.

◆ Imported linear bearing motion pair ensured steady processing accuracy.

◆ Saw blade rotate smoothly due to high accuracy main spindle.

◆ Uniform sped feeding and smooth motion due to air-Hydraulic damping cylinder.

◆ Auto-opening guard shield ensured safety operation.

◆ The two-way location-and-clamping feature high precision and steadiness.

Parameter:

Voltage: 380V   50HZ

Power: 4.4KW

Air pressure: 0.5-0.8MPa

Air consumption: 200L/min

Blade specification: Φ550×Φ30×4.4Z=120(standard size)

Cutter moving speed: 0-2m/min

Cutting length: Max4200mm   Min400mm

Cutting width: 135mm

Cutting height: 300mm

Cutting angle: 45°    67.5°    90°

Angle error: ±4′

Repeat locating length error: ±0.2mm

Surface plainness: ±0.1mm

Surface harshness: Ra12.5 µ m

Overall dimension: 5500mm×1750mm×1990mm
