Features:

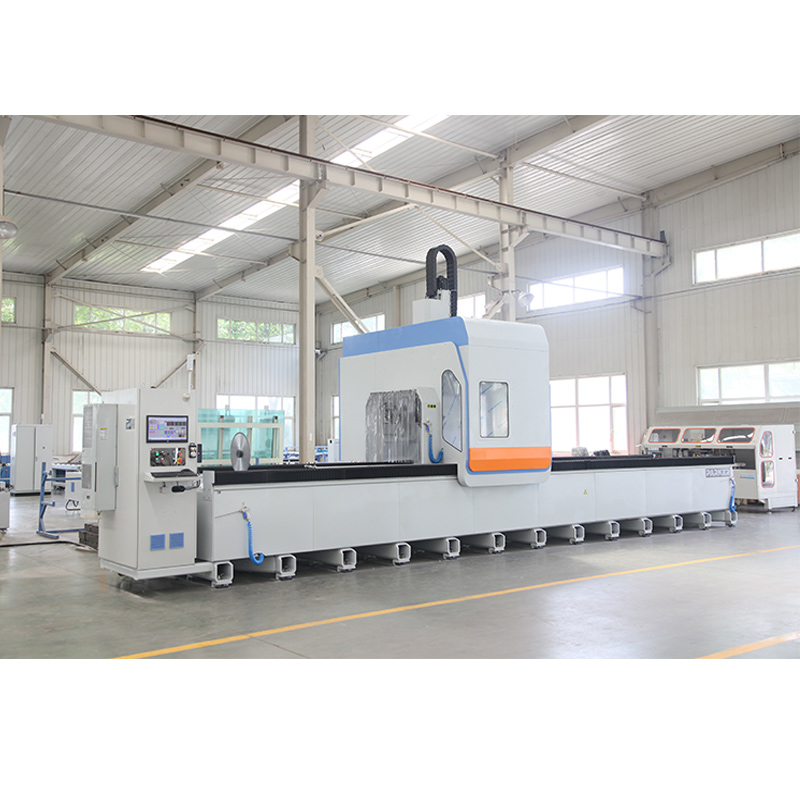

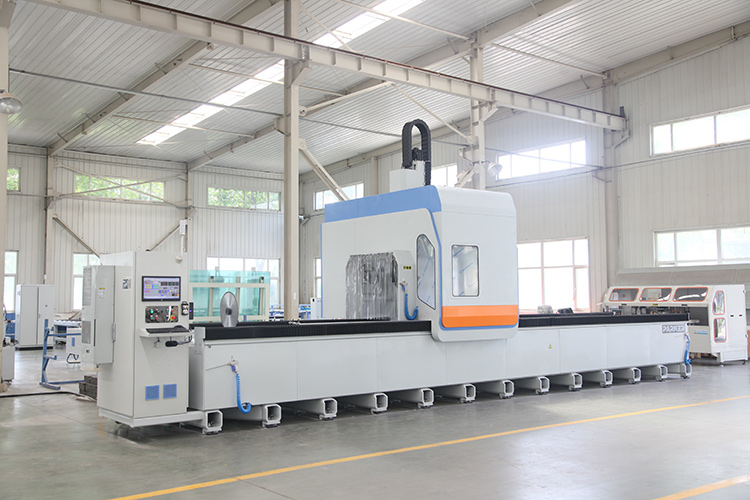

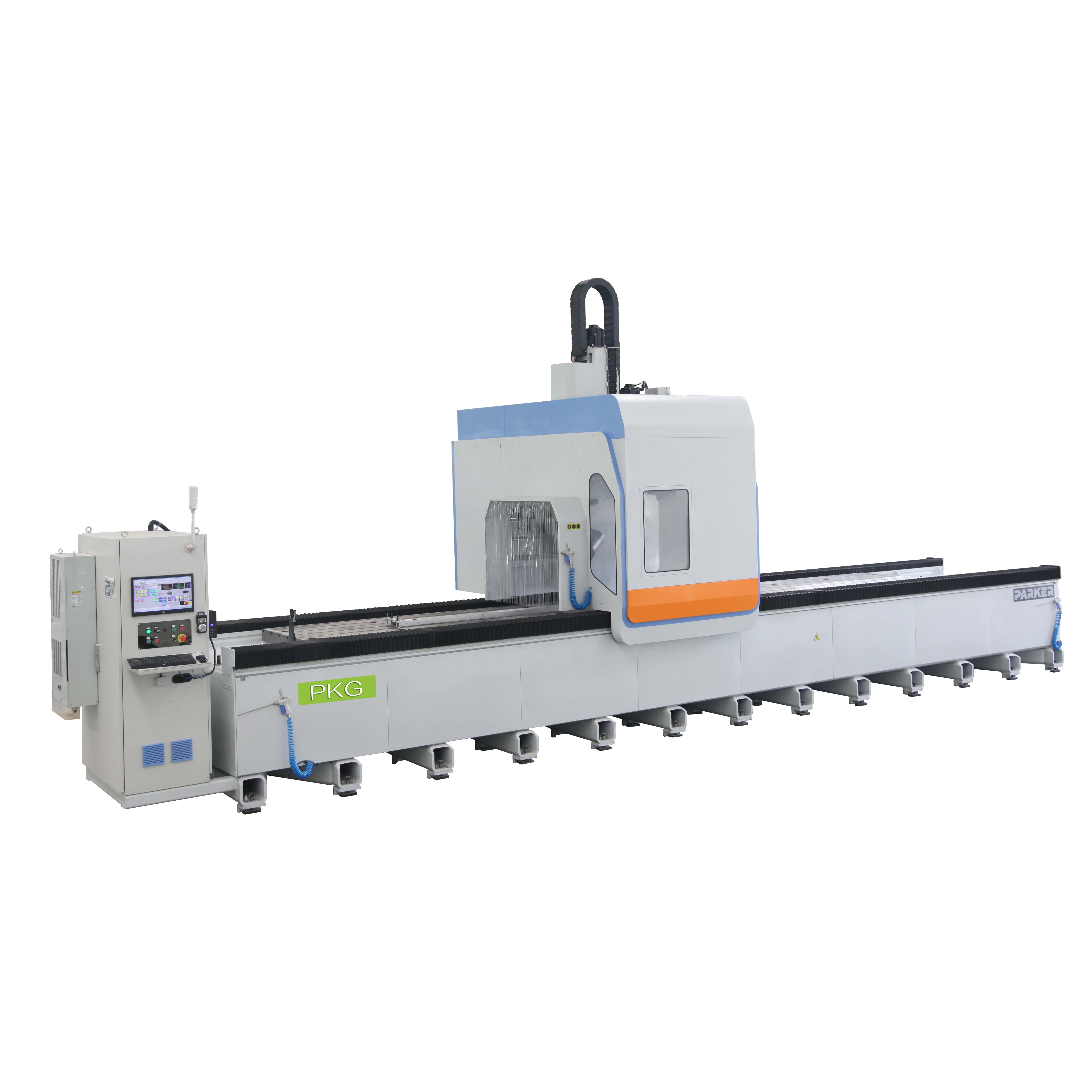

●Using gantry frame structure, running more smoothly, improve the rigidity of the machine tool.
● Suitable for all kinds of aluminum, copper, PVC, industrial profiles and other complex parts processing. Can achieve a workpiece clamping automatically completed milling, drilling, tapping and other multi-process processing.
● Imported well-known brands, easy to operate high-end CNC control system from Italy.
● The use of high-quality imported servo motor, ball screw, linear guide and other bearings and other institutions to ensure that the equipment has a high processing accuracy. High stability, reliability. The feed movement is pre-stretched to ensure the stability of the machining accuracy.
● The machine adopts the imported five-axis milling head to finish the processing at any angle on the other side of the bottom surface. Optional vertical disc 8-bit magazine.
● The use of quantitative timing of the central centralized automatic feed lubrication to ensure the stability of the machine accuracy.

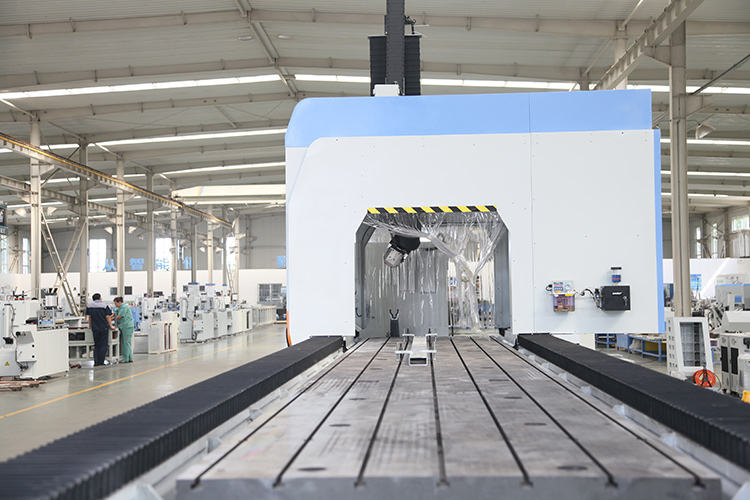

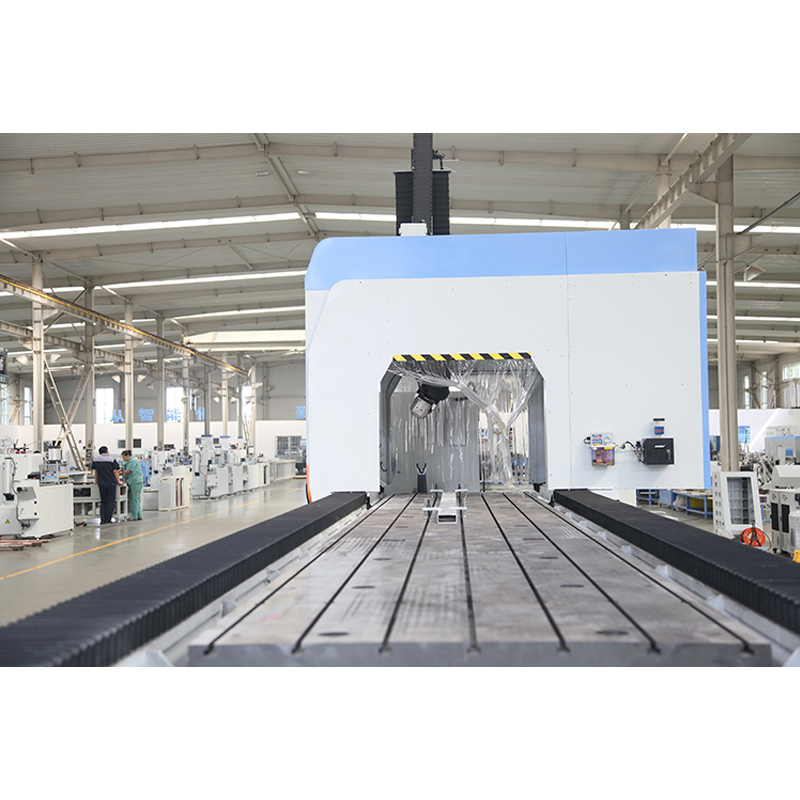

● Use pneumatic clamping table to improve loading and unloading speed. Optional T-type table.
● The use of imported Renishaw interferometer detection, compensation for the accuracy of the machine.
● Use safety protection to ensure safety.
TECHNICAL DATA.
STROKE
Stroke for X axis 7000
Stroke for Y axis 1000mm
Stroke for Z axis 550mm
SPINDLE
Spindle Speed 24000r/min
Spindle Taper HSK-63F
TOOLS
Capacity Of Tools Magazine） 8
MOVING SPEED
X Axis Moving Speed 0～60m/min
Y Axis Moving Speed 0～30m/min
Z Axis Moving Speed 0～30m/min
LUBRICATING SYSTEM
PRECISION
Position Precision Of X Axis ±0.05 mm
Position Precision Of Y /Z Axis ±0.02 mm
Repeating Position ±0.01 mm
SIXE OF MACHINE
Power Supply AC 380V 50Hz
Air Pressure 0.5MPa – 0.8MPa
Weight 24000kg
Area 15500×3000mm
MAIN COMPONENT CONFIGURATION
