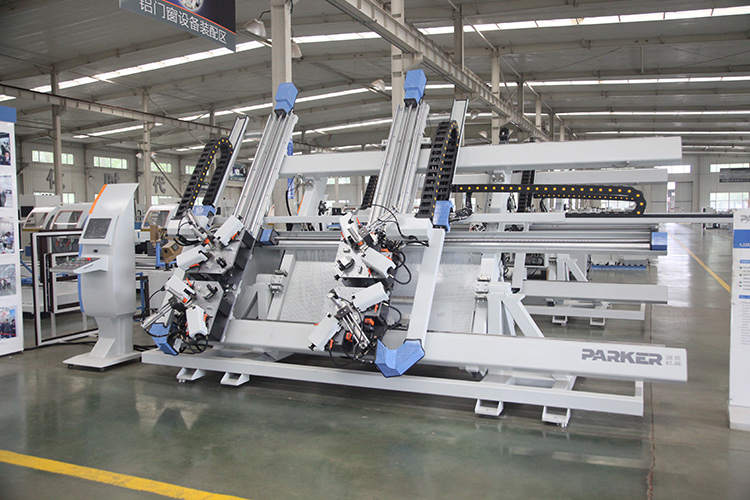

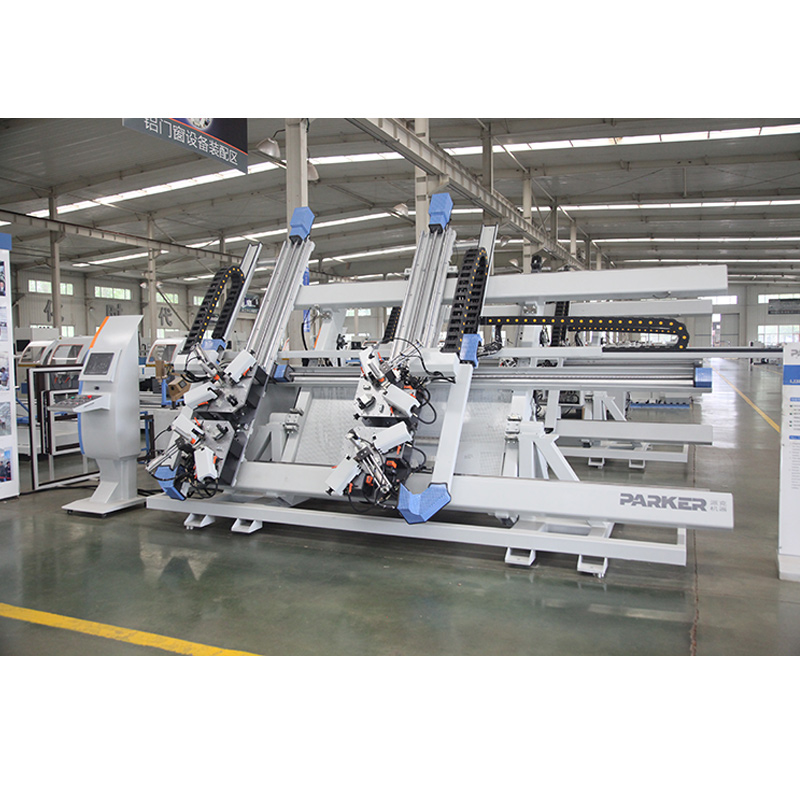

Alu-door-window Four Corner Automatic Crimping Machine
Alu-door-window Four Corner Automatic Crimping Machine Alu-door-window Four Corner Automatic Crimping Machine Alu-door-window Four Corner Automatic Crimping Machine

Alu-door-window Four Corner Automatic Crimping Machine

Product ID : LJJZ4-CNC-1800×3000
Product Tags :
Product Attributes :

Fuselage of entire machine design scientific, reasonable and steadily And it welds with square steel pipe with the thickness of 10mm and make products steady when combining the corner

Product Description

Features:

◆ Fuselage of entire machine design scientific, reasonable and steadily. And it welds with square steel pipe with the thickness of 10mm and make products steady when combining the corner.

◆ Adopt the plunger type large-scale hydraulic pressure station, the pressure stable, offered the pressure well and the noise is low.

◆ The electrically controlled box independent laying independently. It is convenient, even more is advantageous for the crimping angle quality real-time monitoring. The transmission connection uses the

◆ Adopt original installation import flat square guide rail, which can guarantee the precision of the heads when moves horizontally. Transmission adopts the original imported installation ball bearing master screw.

◆ The precision is extremely high so it can guarantee group angle quality.

◆ The servo controlling machines, servo motor, person-machine touching the contact surface are adopt the original imported installation of Japanese Mitsubishi system, and the increase assistance brake system. It is stable and efficiency.

◆ The processing smallest scope is may reach 510x510mm, the manual mediation can realized to 500x500mm, it can suitable for all kinds of windows and doors that enterprise’s processing to need.

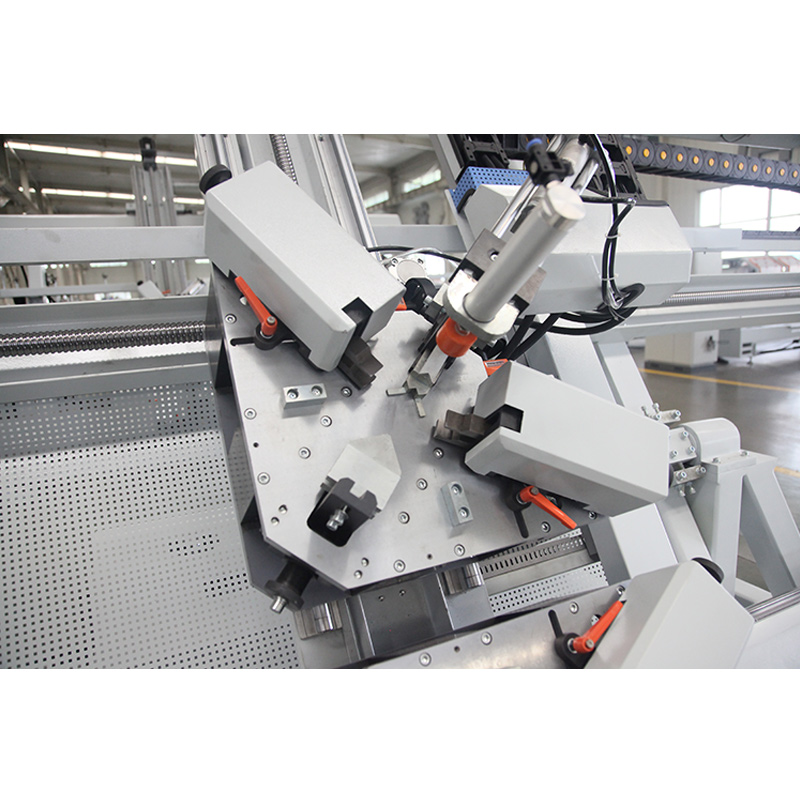

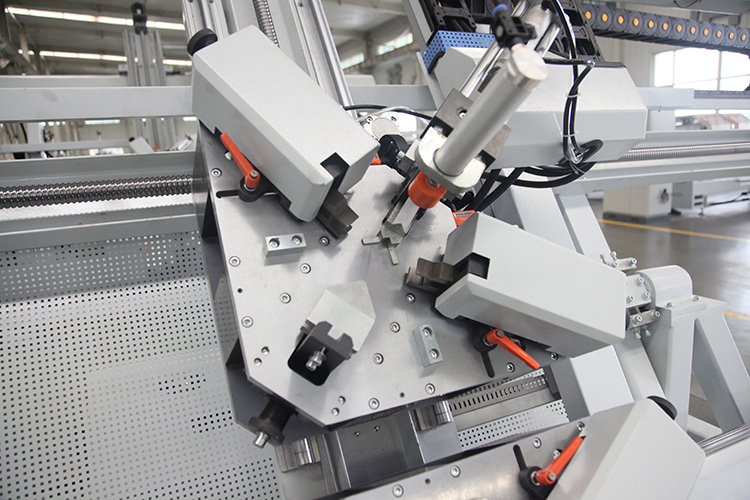

◆ Used for corner punching and riveting combination of aluminum window and door four corner connecting at one time is available which greatly increased the production efficiency.

◆ Clamping device can adjust forward and back, it is easy to operate.

◆ Adopt CNC system can realize automatic and accurate locating thus can produce high accuracy windows.

◆ Wide profile processing range due to convenient corner combining cylinder detting.

◆ Suitable for various kinds high quality and high volume windows production.

Alu-door-window-Four-Corner-Automatic-Crimping-Machine

Parameter:

Voltage: 380V   50HZ

Power: 7.5KW

Air pressure: 0.5-0.8MPa

Air consumption:0.45L/time

Hydraulic system pressure: 15MPa

Oil tank capacity: 60L

Corner assemble: 0-50mm

Max. dimension of window: 1800x3000mm

Max. dimension of window: 510x510mm

Max. width of profile: 100mm

Seam of crimping error: ≤0.15mm

Overall dimension: 5450mm×1900mm×2500mm

Alu-door-window-Four-Corner-Automatic-Crimping-Machine
