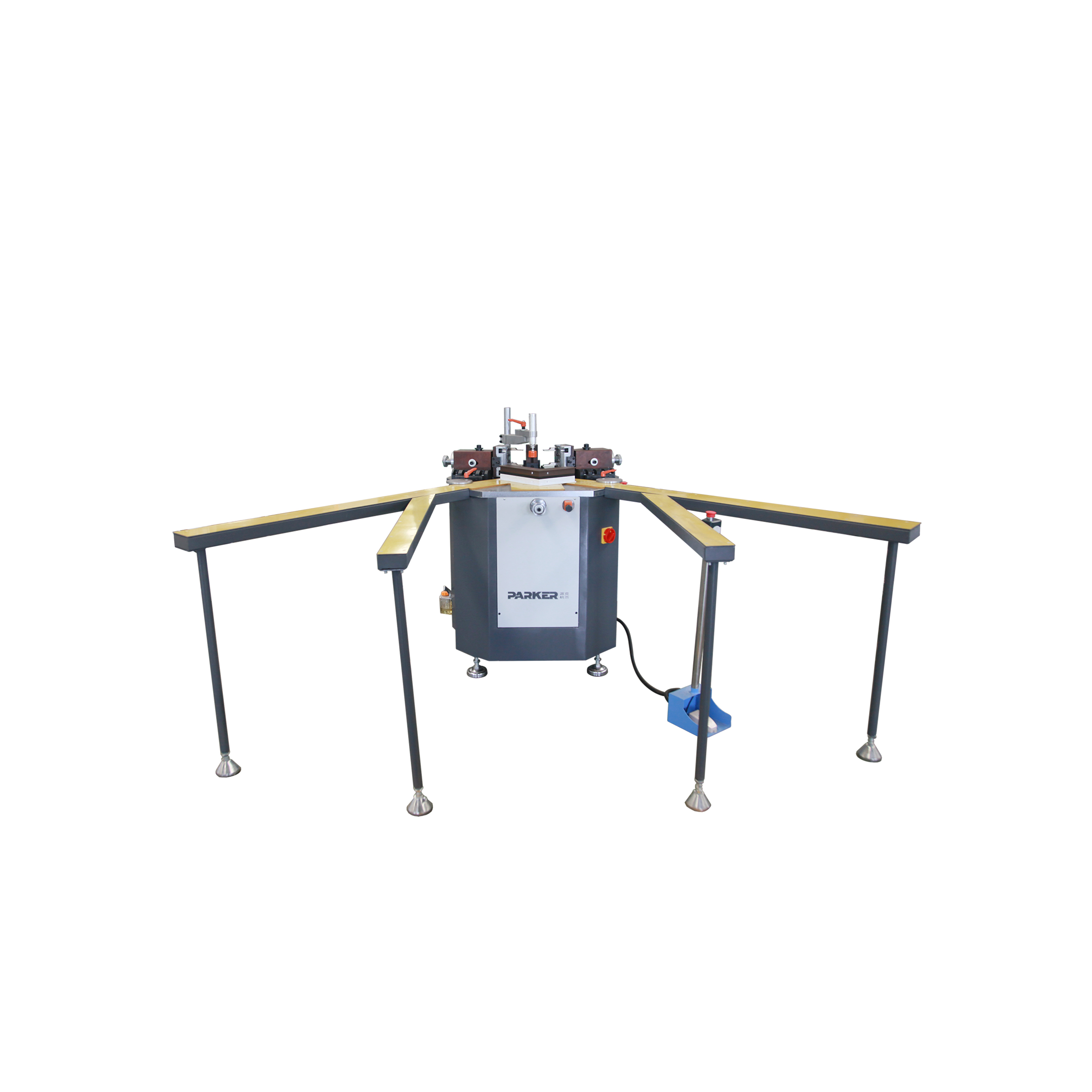

Hydraulic corner crimping machine for aluminum doors and windows
Hydraulic corner crimping machine for aluminum doors and windows

Hydraulic corner crimping machine for aluminum doors and windows

Product ID : LJJ-160A
Product Description

Features:

1.The newly designed synchronous punching riveting process greatly improves the qualified rate of finished products

2.The power is controlled by the hydraulic system to make the work stable and reliable.

3.The left and right punches are fed rigidly and synchronously to avoid the useless deformation of the corner assembly process and make the window corner connection more firm.

4.Synchronous feeding mechanism makes machine adjustment easy

5.Thread adjusts the distance between upper and lower corner knives, making tool setting more convenient

6.Can be equipped with single and multi- point corner knives to make the corners of the thermally insulated aluminum doors and windows more reliable

Parameters:

Power 380V 2.2KW

hydraulic system pressure 40Mpa

Gas consumption 2L/min

Angle cylinder motion stroke 0~50mm

Splicing gap ≦0.15mm

Air pressure 0.5~0.8Mpa

Fuel tank capacity 20L

Profile Height ≤160mm

Dimension 1096mm×1800mm×1300mm

Weight 480KG
