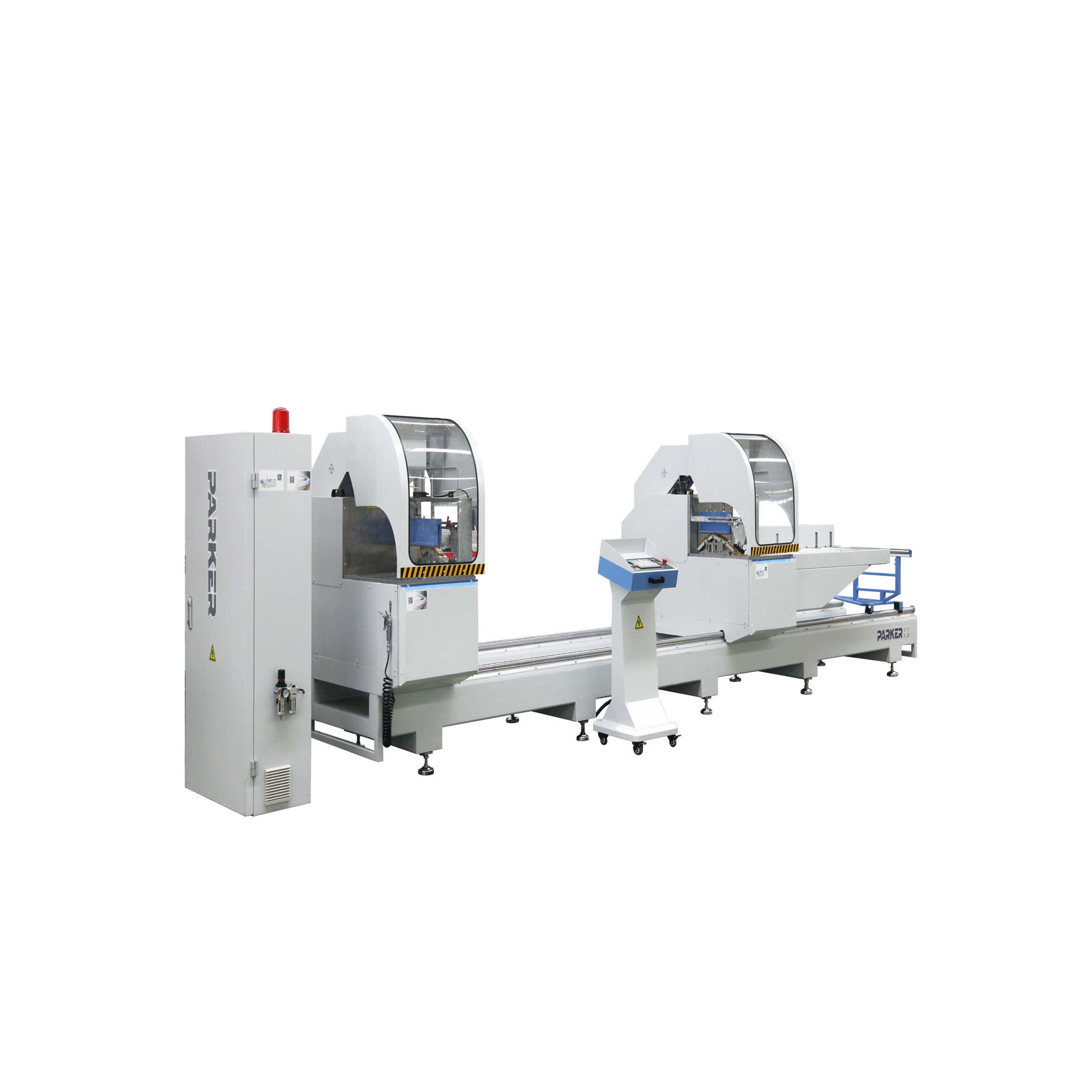

Heavy Duty CNC Doubal Head Cutting Machine

Main Feature

1.It is mainly used for cutting aluminum profiles such as industrial profiles, curtain wall and window profile, also can cutting PVC profile with 90°angle.

2.Equipped with hard alloy saw blade, the maximum external diameter can be up to 600mm, with high linear velocity and processing precision.

3.Equipped with Ltalian CNC length positioning system, pinion and rack contral systerm, with enlarge 3KW motor.

4.High precision for length positioning which is much suitable for cutting aluminum profile and large section.

 Parameter

Cutting length 300-5000mm

Cutting height and width 60*540mm/200*310mm

Power 3kw*2(+1.5KW)

Rotary speed 2880r/min

Saw blade dimension Φ600x5.0/140xφ30

Cutting angle 90°

Blade feeding speed 0-3m/min

Blade returning speed 2-3m/min

Air pressure: 0.5-0.8Mpa

Voltage 380v 50Hz

Overall dimension 6350×1620×1700mm+（Electrical box:800X500X1700）

Weight 1800kg
