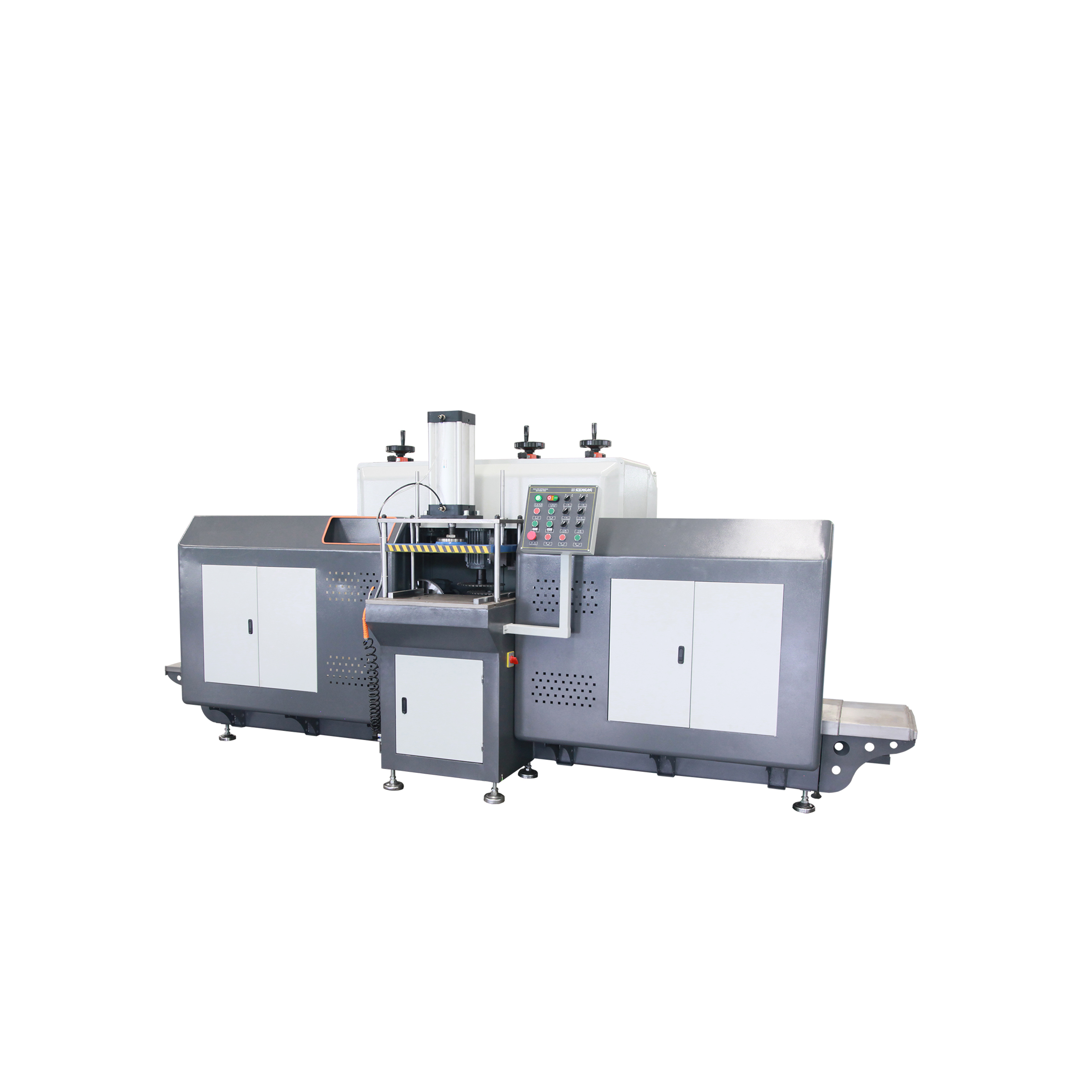

Multifunctional six-axis cutter-moving tenon milling machine for aluminum profile

Features:

1.This machine adopts cemented carbide disc milling cutter, which is self-made by our company according to cutting requirements. Special milling cutters can also be designed and processed according to user requirements.

2.The special lengthening motor is connected with the blade for milling.

3.The handle and lead screw are used to drive the movement of the horizontal or vertical rail to adjust the height and depth of the milling profile by the blade.

4.The feed mechanism adopts a reducer motor to drive the lead screw, which can be adjusted by frequency conversion, which makes the cutting feed more stable, uniform cutting accuracy and good surface quality, protected by a protective cover, and high safety efficiency.

5.The pneumatic control system realizes the spray control of work piece compression and cutting feed, simple operation, safe and reliable, and high production efficiency.

6.There is a compression cylinder with a diameter of 160mm on the fixed table where the profile is placed, which can clamp multiple profiles and is stable and reliable.

Parameters:

Power 380V   50HZ

Motor speed 2800r/min

Air pressure 0.5-0.8MPA

Quantity of and saw blades milling cutters 6 PCS (2 piecesΦ350 saw blades; 4 pieces Φ250 milling cutters)

motor power 2.2KW×6

Feed motor power 1.5KW

Motor spindle diameter Φ30mm

Saw blade Specification 350×3.5×30×Z100×2

Dimension 3850*2000*1900mm

Weight 1800KG
