Features:

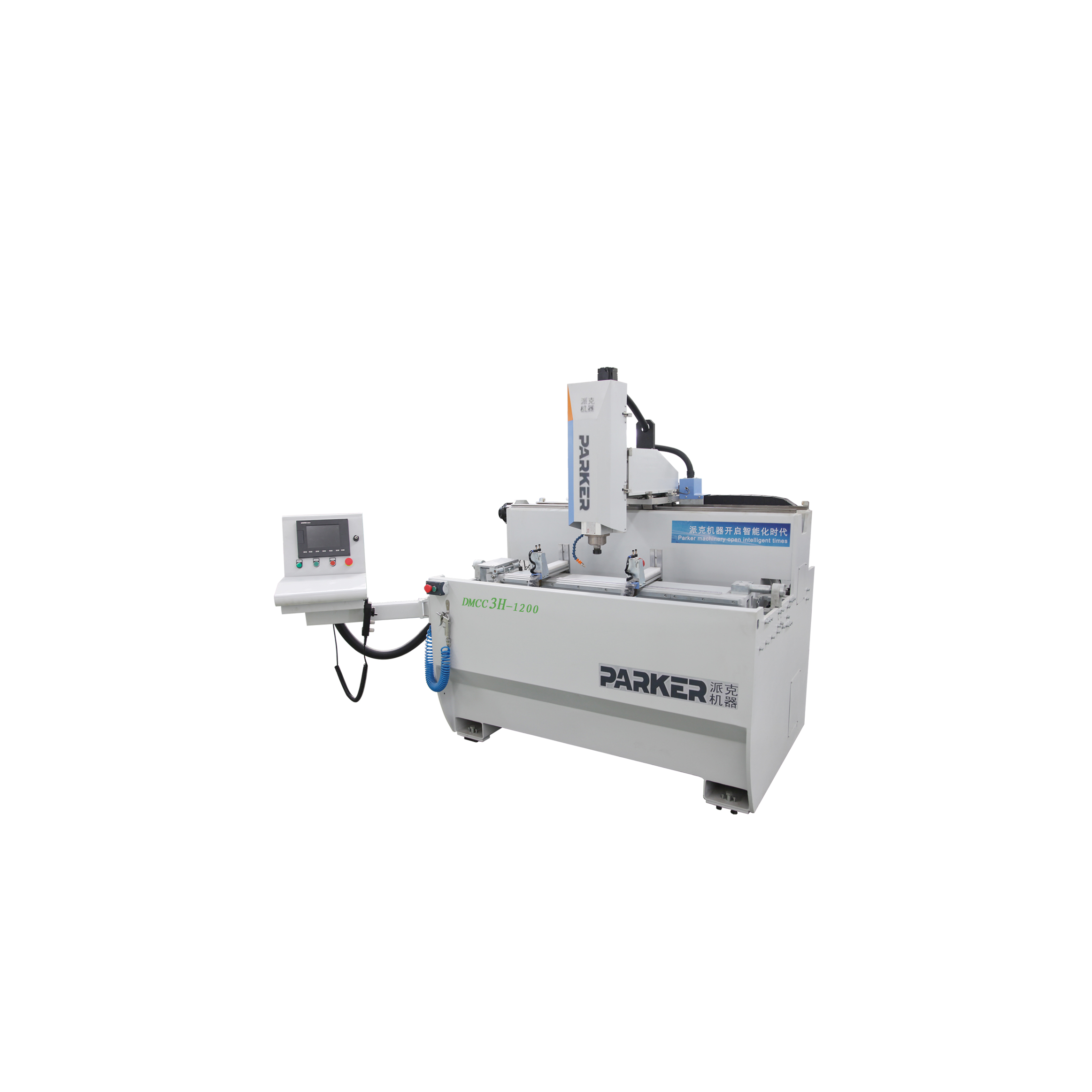

1. It is suitable for milling all kinds of holes and grooves of aluminum door and window profiles;
2. High precision linear guideway pair, ball screw and servo motor are adopted to ensure stable movement and accurate positioning and machining accuracy;
3. Using high-speed motorized spindle, stable rotation, low noise and strong cutting ability;
4. The rotatable worktable can be freely converted from - 90 ° to + 90 ° to realize one clamping and milling of three surfaces;
5. Using Joint development CNC system of PARKER and Shandong University , simple and intuitive man-machine interface makes the operation more convenient and fast.
TECHNICAL DATA.
STROKE
（Stroke for X axis） 1200mm
（Stroke for Y axis） 300mm
（Stroke for Z axis） 300mm
SPINDLE
（Spindle Speed） 18000rpm/6kw
MOVING SPEED
（X Axis Moving Speed） 0～80m/min 60
（Y Axis Moving Speed） 0～75m/min 30
（Z Axis Moving Speed） 0～75m/min 30
SIXE OF MACHINE
（Power Supply） AC 380V 50Hz
（Power） 7KW
（Air Pressure） 0.5MPa – 0.8MPa
（Area） 2525×1330×2060mm
(Working angle) -90°、0°、+90°
(Cutter size) ER20--Ф8
(Tool cooling) automatic spray cooling
Processing range(W*H*L) 160×160×1200mm
Features Once clamping, it can process three surfaces
MAIN COMPONENT CONFIGURATION
CHANGSHENG CHINA
Guild rail CHINA
Pneumatic components PINLI CHINA
CNC System Joint development of PARKER and Shandong University
Electrical components CHNT CHINA
Servo motor INVT CHINA
Ball screw CHINA
