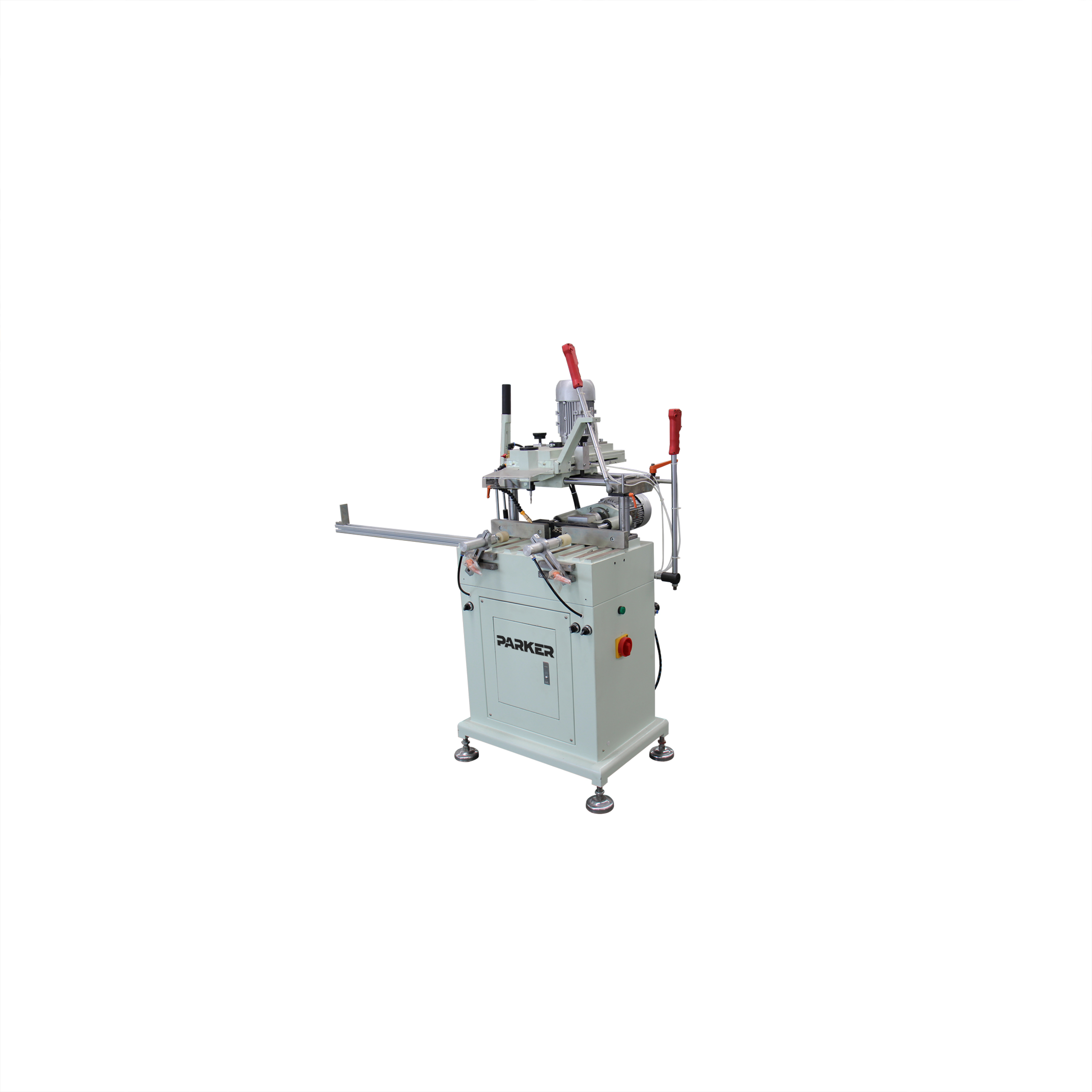

Alu-alloy Copy and Three Hole Drill machine
Product ID : LFZG3
Product Tags :
Aluminum Door And Window Making Machine
Product Attributes :
Copy-routing processing is available
Product Description
Feature:
◆ Used for processing lock-holes and grooves on aluminium windows and doors.
◆ Copy-routing processing is available.
◆ It can realize horizontal drilling of three holes and vertical copy routing of long holes.
◆ It features compact structures, small volume, high efficiency and double uses.
Parameter:
Voltage: 380V 50HZ
Motor Power: 1.85KW
Air pressure: 0.5-0.8MPa
Diameter of Milling Cutter: Φ5mm
Diameter of drilling bit: Φ12mm
Rotary speed: 2800r/min
Surface Harshness: Ra12.5 µ m
Copying dimension: 290X90mm
Drilling hole position error: ±0.2mm
Overall dimension: 1000mmX1100mmX1500mm
Weight: 270KG
