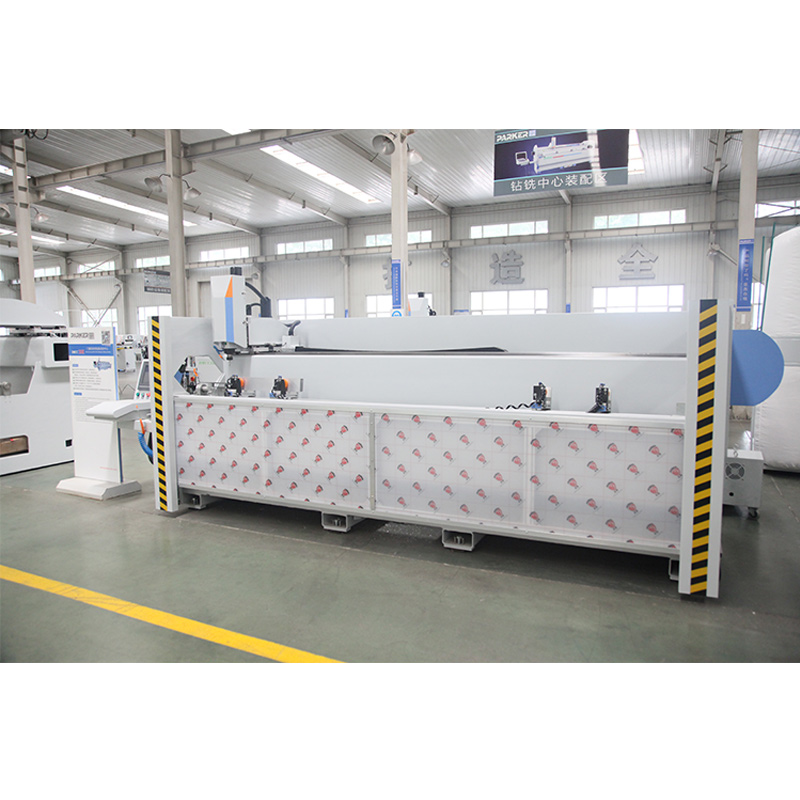

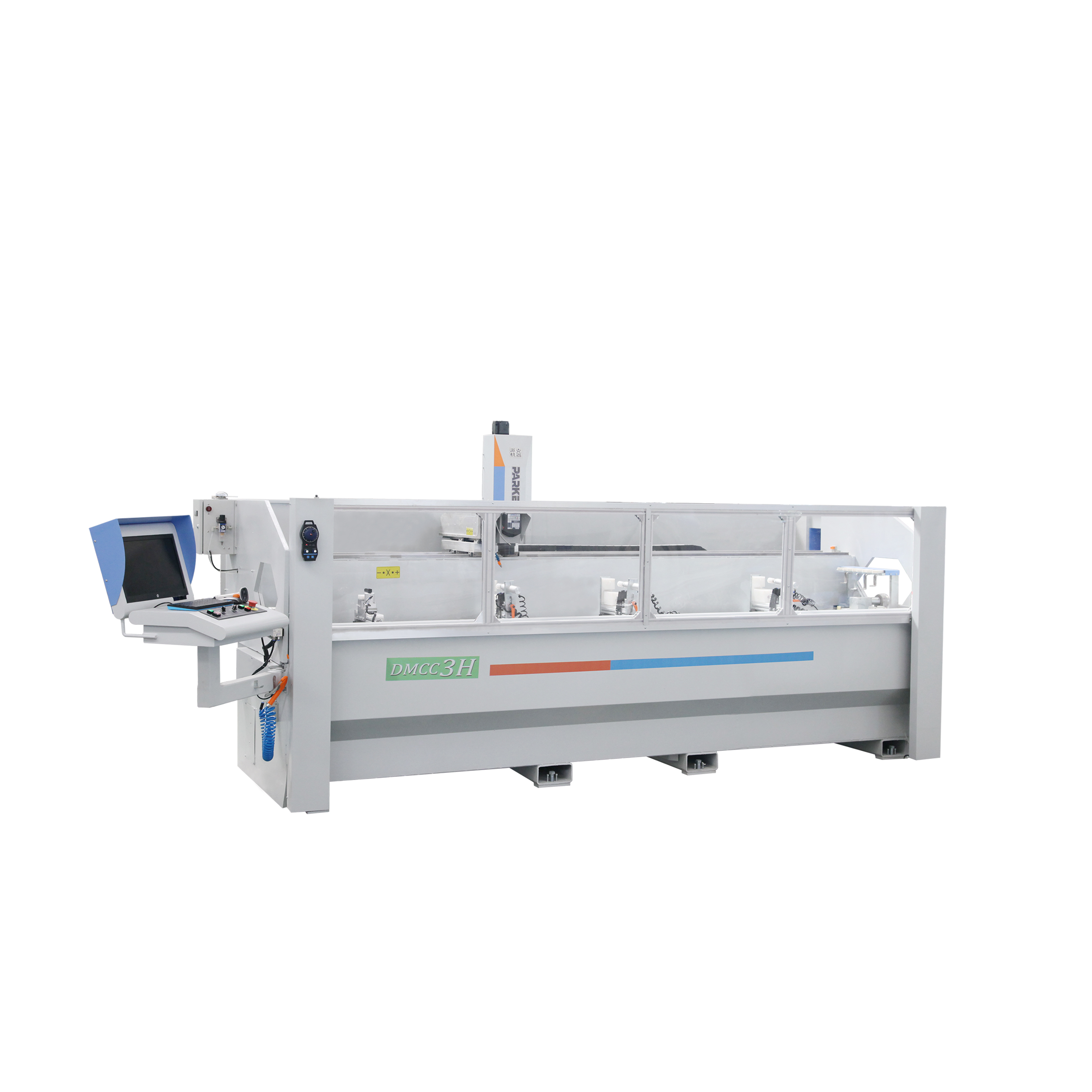

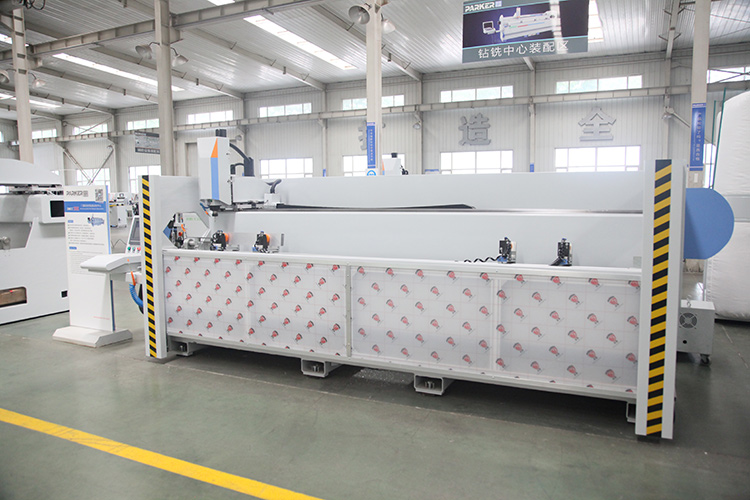

CNC Drilling machining center

Features:

◆ The machine is suitable for processing varieties of holes and slots for diversified aluminum doors and windows.

◆ It adopts high-precision linear guide pair, ball screw, pinion and rack and imported servo motor to ensure the machine runs steadily with high precision.

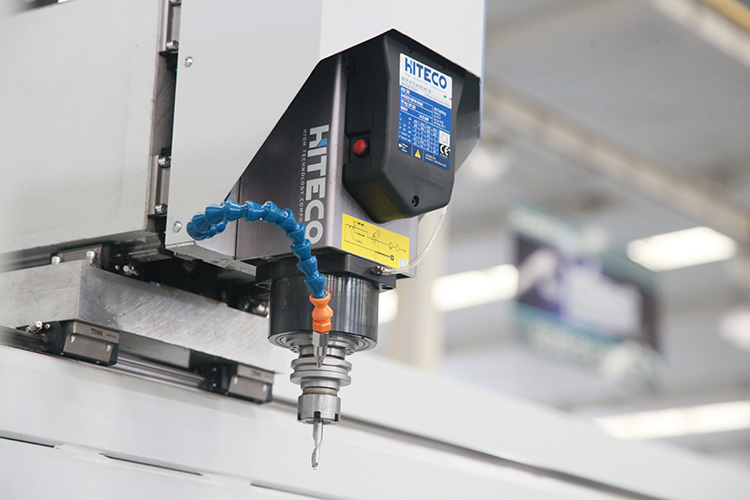

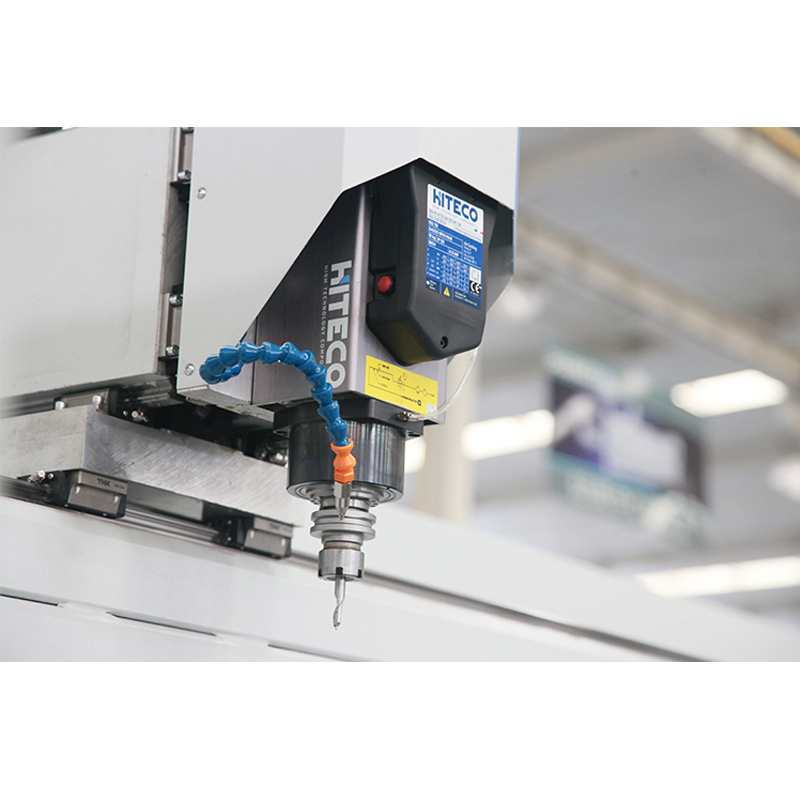

◆ It adopts Italian HSD high-speed motorized spindle to ensure the machine runs steadily with lower noise and better cutting ability.

◆ It adopts vegetable oil microcrystalline cooling system to improve the tool life without poison and pollution.

◆ The rotary workbench can change the position among -90°、0° and +90° arbitrarily, one time clamping can finish milling for three sides.

◆ It adopts PA control system from Germany, intelligent CNC control system and straightforward human-computer interface make the operation much more convenient and efficient.

Parameter:

X axis Stroke: 3200mm

Y axis Stroke: 300mm

Z axis Stroke: 200mm

X axis Speed: 0～140m/min

Y axis Speed: 0～75m/min

Z axis Speed: 0～75m/min

Spindle speed and Power: 18000rpm/3kw

Work table position: -90°、0°、+90°

Cutter size: ER25-Ф8

Air Pressure: 0.5～0.8MPa

Voltage: 380V/50Hz

Power: 6kw

Cutter cooling: Auto spraying and cooling

Processing dimension: （W×H×L）：160×160×3200mm

Processing character: Can process three sides of profile per time loading profile

Dimension（L×W×H): 4525×1630×1900mm
