Feature:

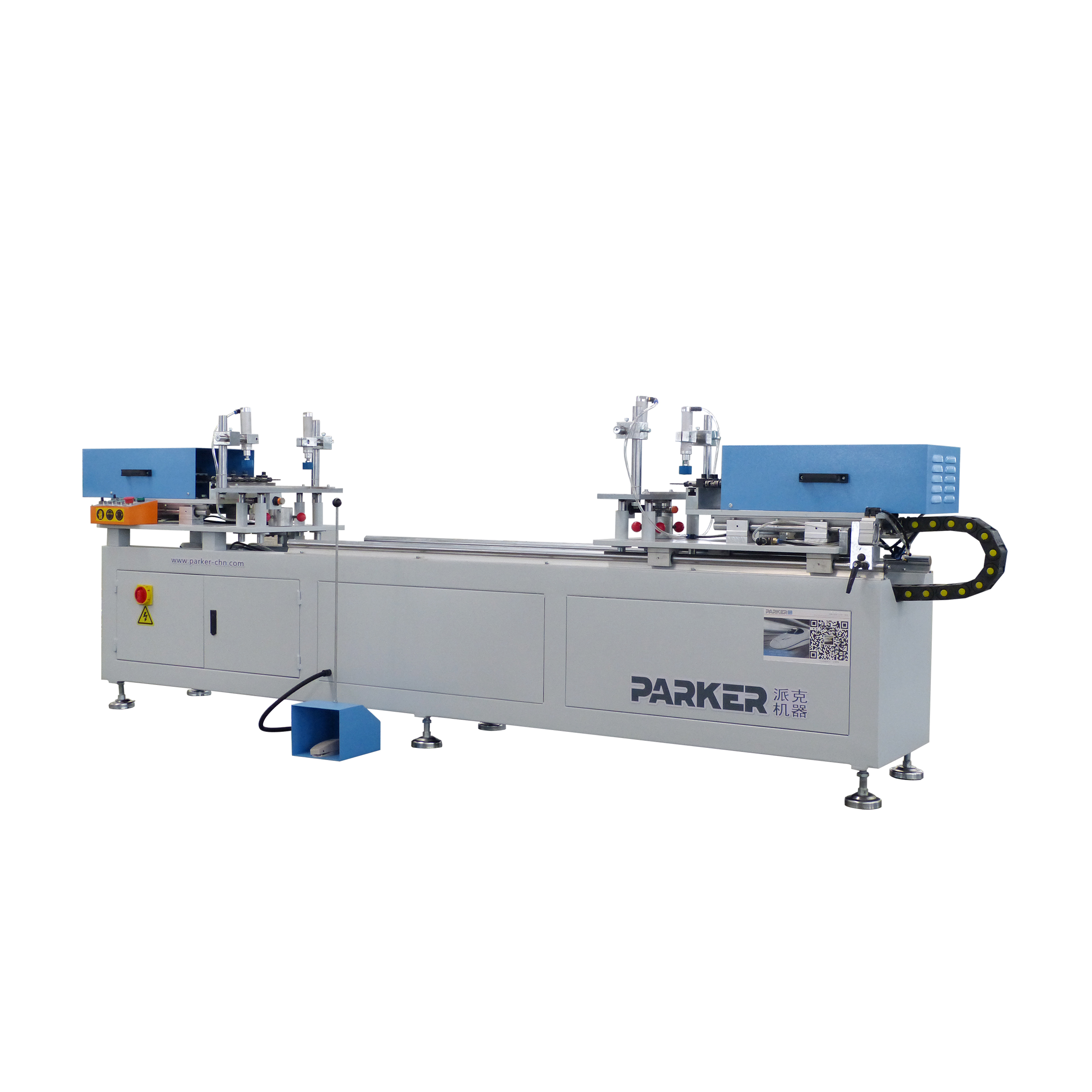

◆ Mainly used for door and window drilling hinge machine
◆ Four holes can be drilled on both sides at the same time, high production efficiency
◆ The two machine heads can work individually or simultaneously
◆ The drill bit is moved on the linear guide rail by the gas-liquid damping cylinder, and the work progress is stable.
◆ There is a linear motion pair between the carriage and the guide rail, the movement of the machine head is fast and flexible to ensure the smoothness of the movement
◆ Equipped with a supporting rack to facilitate adjustment of the processing height
◆ Equipped with a device that can adjust the center distance of the drill bit to facilitate drilling different hinge holes
Parameter:
Power source: 380V 50HZ three-phase four-wire system
Motor power: 2×0.75kw
Drill speed: 1400r/min
Processing horizontal length: 450-1800mm
Air pressure: 0.5-0.8MPa
Feed speed: Stepless speed regulation 0-3m/min
Air consumption: 20L/min
Minimum spacing: 30mm
Weight: 800kg
Dimensions: 3100*1500*1500mm
