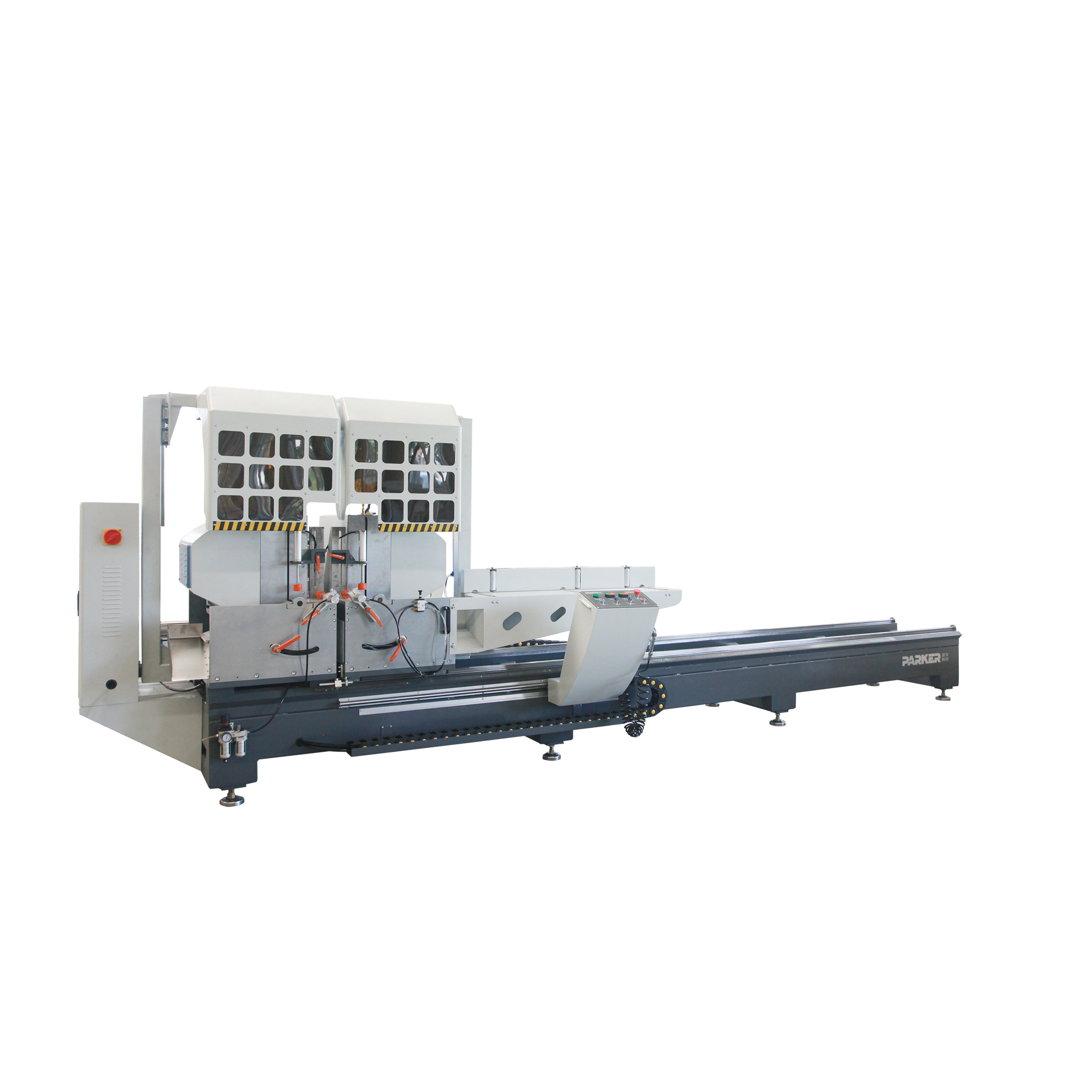

Aluminium Precise Double Mitre Cutting Saw

Feature:

◆ LJZ2-550X4200 is used for cutting of alu-alloy and curtain wall profile. The imported special hard-metal saw features the high precision and efficiency for cutting alu-alloy doors and windows. And the cutting precision has reached the advanced level in the world. The hi-precision main shaft makes the saw stable and the surface smooth. The gas-liquid damping cylinder realizes smooth feeding and steady moving.

◆ The automatically opening and closing protecting cover makes the operation safe and easy. The moving heads adopt imported linear bearing motion pair, and they features high precision.

◆ he moving feeder can efficiently locate the profile, and making the clamping easy and reliable. With the large saws and long structures, the saw has large cutting range.

Parameter:

Voltage: 380V  50HZ

Power: 4.4KW

Air pressure: 0.5-0.8MPa

Air consumption: 200L/min

Blade specification: Φ550×Φ30×4.4Z=120(standard size)

Cutting length: 400mm-4200mm

Cutting width: Max.135mm

Cutting height: Max.300mm

Cutting angle: 45°  90°

Angle error: ±4′

Repeat locating length error: ±0.2mm

Surface plainness: ±0.1mm

Surface roughness: Ra12.5µm

Overall dimension: 5500mmX1750mmX1990mm
